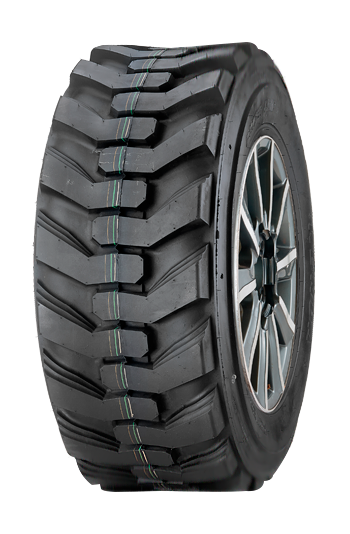

BT7003
| Inquiry | Size | Ply Rating | S.W | O.D | Single Wheel | Inflation Pressure | Rim Width | Tread Depth | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| inch | mm | inch | mm | psi | kgs | psi | kpa | inch | mm | |||
| 10-16.5 | 8PR | 10.4 | 264 | 30.43 | 773 | 4140 | 1880 | 60 | 410 | 16.5x8.25 | 20 | |
| 10-16.5 | 10PR | 10.4 | 264 | 30.43 | 773 | 4710 | 2135 | 75 | 520 | 16.5x8.25 | 20 | |
| 10-16.5 | 12PR | 10.4 | 264 | 30.43 | 773 | 5240 | 2375 | 90 | 620 | 16.5x8.25 | 20 | |
| 12-16.5 | 8PR | 12.10 | 307 | 32.73 | 831 | 4810 | 2180 | 50 | 340 | 16.5x9.75 | 20 | |
| 12-16.5 | 10PR | 12.10 | 307 | 32.73 | 831 | 5600 | 2540 | 65 | 450 | 16.5x9.75 | 20 | |
| 12-16.5 | 12PR | 12.10 | 307 | 32.73 | 831 | 6320 | 2865 | 80 | 550 | 16.5x9.75 | 20 | |
